| Parameter | Details |
|---|---|
| Support Range | RGB: 128 × 384 (per LS-Q1); Max. 65536 × 65536 pixels (cascade) RG Single/Double Color: 256 × 1024 |
| Supported Functions | Play Video / Image / Animation / Text / Date / Time (Synchronous mode) |
| Gray Level | 65,536 |
| Refresh Rate | 16 KHz |
| Frequency | 0.2 MHz – 31.25 MHz |
| Data Groups | 16 groups of full-color signal |
| Cascade Capacity | Up to 65,536 cards |
| Communication Mode | 1000 Mb LAN (Gigabit) |
| Memory | 1 GB per LS-Q1 |
| Working Mode | Asynchronous & Synchronous |
Led Control Card

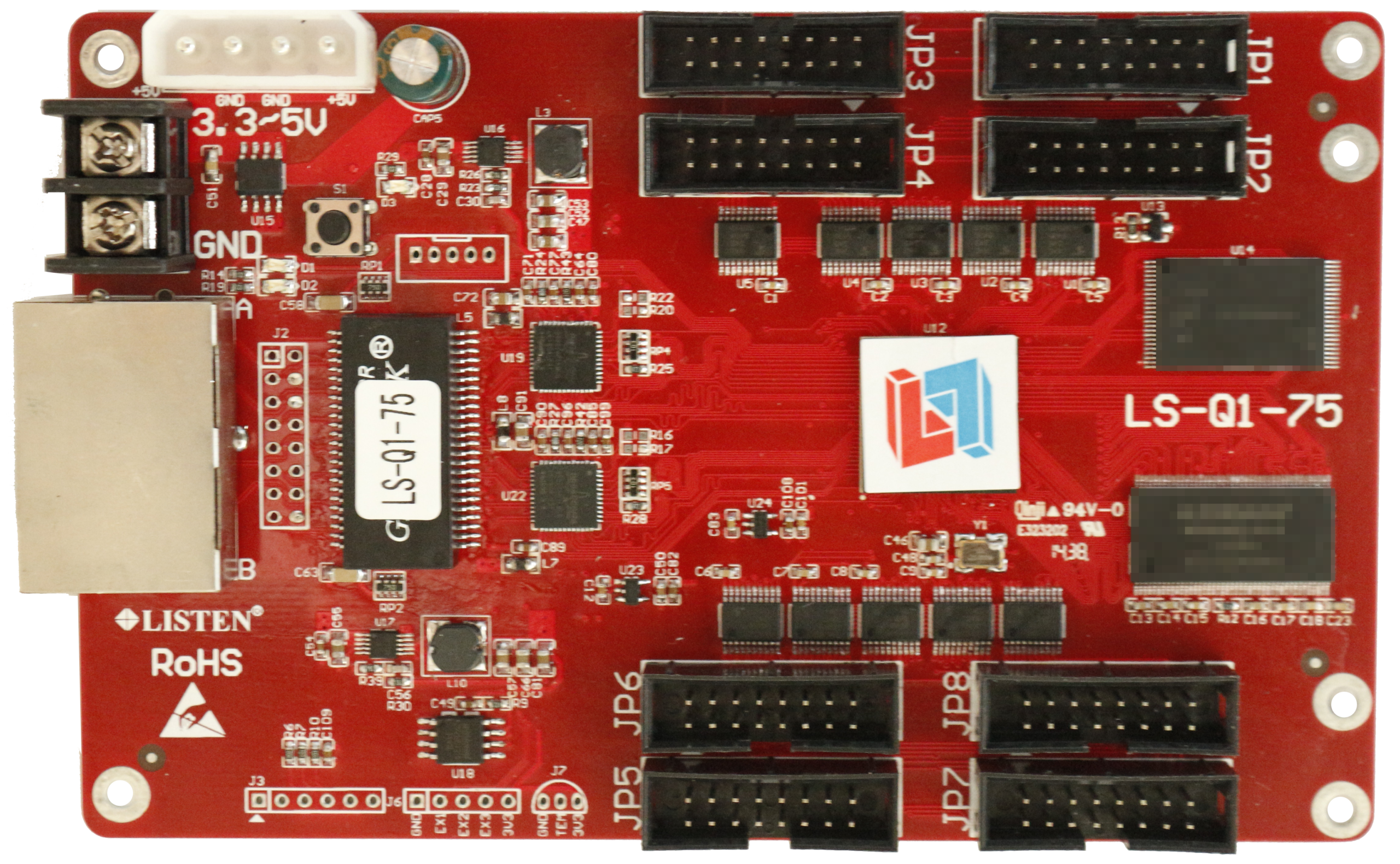

Q1-75 LED Controller Card
Original price was: ₹1,800.00.₹1,600.00Current price is: ₹1,600.00.
High-performance LED controller card with 65K gray levels, 16KHz refresh, gigabit LAN, and support for large-scale cascade connections.
Availability: 1 in stock
