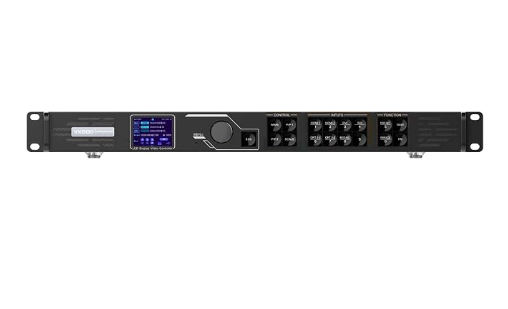

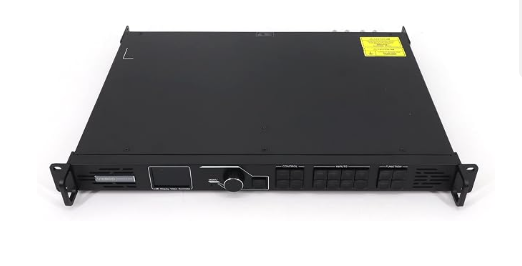

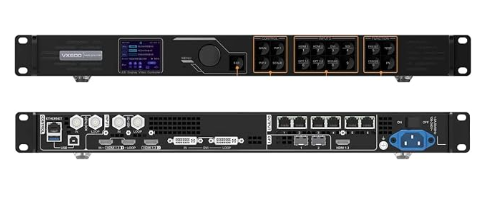

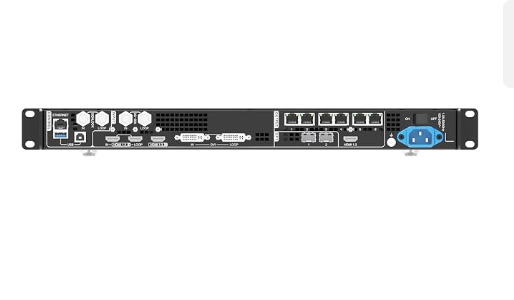

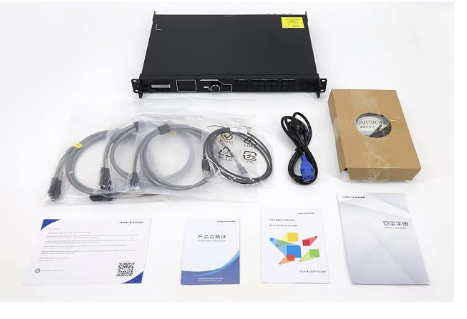

The NovaStar VX600 LED Video Processor & Controller is a professional all-in-one solution designed to process and control LED display content for large-format and high-resolution LED screens.
The VX600 combines video processing and LED display control in one unit, helping simplify LED screen installations for events, stage productions, rental LED displays, corporate video walls, control rooms, fine-pitch LED screens and commercial digital displays.
It can drive up to 3.9 million pixels and supports a maximum output width of 10,240 pixels and maximum height of 8,192 pixels. The controller provides 6 Gigabit Ethernet ports for LED display signal output and supports multiple video input sources including HDMI, DVI and 3G-SDI.
Key Features of NovaStar VX600
Up to 3.9 Million Pixels
The NovaStar VX600 can drive up to 3.9 million pixels per unit, making it suitable for high-resolution LED display installations.
6 Gigabit Ethernet Outputs
The controller provides 6 Gigabit Ethernet ports for sending processed video data to the LED display receiving system.
Maximum Output Size of 10,240 × 8,192 Pixels
The VX600 supports a maximum output width of 10,240 pixels and maximum output height of 8,192 pixels, making it suitable for ultra-wide and ultra-high LED display applications.
Multiple Video Inputs
The VX600 supports multiple video signal formats, including:
- HDMI 1.3
- DVI
- 3G-SDI
- Optical input
This provides flexibility when connecting cameras, media servers, computers and other professional video sources.
3 Processing Layers
The VX600 provides 1 main layer and 2 picture-in-picture layers, allowing users to manage multiple visual sources and adjust their size, position and priority.
Low-Latency Processing
Low-latency processing helps reduce the delay between the source video and the LED screen, which is useful for live events, stage productions and camera-based applications.
Image Scaling
The VX600 provides stepless output scaling, allowing the processed image to be adjusted to the required LED display size.
Brightness and Chroma Calibration
Pixel-level brightness and chroma calibration features help maintain consistent image quality across LED display modules.
Genlock Synchronization
Genlock support allows synchronization with external video systems where synchronized output is required.
10 User Presets
Users can save up to 10 presets for frequently used screen configurations, helping speed up setup and operation.
Applications
The NovaStar VX600 can be used for:
- LED video walls
- Rental LED screens
- Stage LED displays
- Concert LED screens
- Event LED displays
- Indoor LED video walls
- Outdoor LED displays
- Fine-pitch LED displays
- Corporate LED displays
- Conference room LED screens
- Control rooms
- Exhibition displays
- Commercial advertising LED screens
- Live production systems
- Large-format digital displays
Why Use the NovaStar VX600?
The VX600 combines video processing and LED display control into a single professional device. Its multiple input options, 6 Gigabit Ethernet ports, high pixel capacity, scaling functions, low-latency processing and synchronization features make it suitable for different professional LED display environments.
It can help reduce the need for separate processing and control equipment while providing flexible control over LED display content.
Compatibility and Installation
The complete LED display system should be checked before installation. Compatibility can depend on the LED receiving cards, screen resolution, refresh rate, bit depth, cabinet configuration, video source and other system components.
For professional LED screen installations, confirm the complete configuration with an experienced LED display technician before purchase.
Order NovaStar VX600
Contact our team for the latest NovaStar VX600 price, availability and LED display system compatibility.
If you are planning a complete LED video wall, our team can also help you select the appropriate controller, receiving cards and other LED display components.
